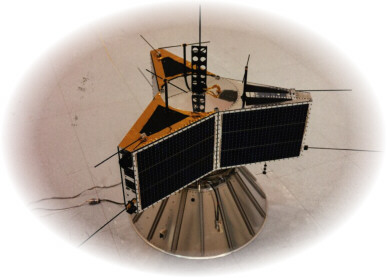

AO-10

AO-10 MODE-B TRANSPONDER

INVERTING TRANSPONDER (LSB uplink, USB downlink)
UPLINK PASSBAND: 435.027 - 435.179 MHz LSB
DOWNLINK PASSBAND: 145.825 - 145.977 MHz USB
TRANSLATION EQUATION: Downlink Freq = 581.004 - Uplink Freq.

BEACONS:

145.810 MHz (continuous carrier) - (145.807MHz per Reinhard at AMSAT-DL)
145.987 MHz Engineering Beacon

See also ...

http://www.cstone.net/~w4sm/AO-10.html
http://www.amsat.org/amsat/sats/n7hpr/ao10.html
http://www.amsat-dl.org/ao_10.html

        General Beacon           145.810 (2W, unmod. carrier)    Mode-B
        Engineering Beacon       145.987 (4W, switched off)      Mode-B
        General Beacon           436.040 (2W, switched off)      Mode-L
        Engineering Beacon       436.020 (2W, switched off)      Mode-L

        Mode-B Uplink            435.180 - 435.030               CW/LSB
        Mode-B Downlink          145.825 - 145.975 (50W PEP)     CW/USB

        Mode-L Uplink            1269.85 - 1269.05 (not active)  CW/LSB
        Mode-L Downlink          436.15 - 436.95   (not active)  CW/USB
